Flowtherm’s ball valve range includes a variety of ball valve designs from 1 piece, 2 piece, and 3-piece ball valves, and with multiple connections include butt-welded and flanged valves. Also, while ball valves are often considered a straight forward design, Flowtherm offers a number of customized designs, from higher grade materials and specifications, to unique ball profiles such as Habonim’s Tubore series.
Flowtherm’s offering for Pharmaceutical and Personal Care industries includes:
The Modentic MD-928TC 3 Piece Sanitary Ball Valves and MD-928EB High Purity Cast Ball Valve are available in both forged and cast pieces of stainless steel, all wetted metallic surfaces of clean ball valves are constructed from stainless steel, which are capable of withstanding the temperature, pressure, and chemical corrosiveness assuring the purity and integrity of the products, In addition to SS316L and CF3M; higher grade materials are available upon request, such as AL-6XN, Nickel Alloys, Stainless steel Duplex.
Habonim
control valves are designed to meet industrial
demands for accurate, flexible, cost efficient and maintenance friendly flow
control systems. The valves provide excellent performance in the harshest
environments. They offer a compact, lightweight, long-life solution with:
step-less characterized pressure and flow control for fast response times, wide
rangeability, and bubble-tight shutoff. Critical performance features include:
high pressure drop capacity with straight-through flow, high Cv, and large
exhaust capacity. Other design features ensure ease of maintenance and zero
backlash.
The TuBore series is Habonim’s line of sanitary ball valves for the pharmaceutical, bioprocessing, food and beverage industries. The valves comply with ASME BPE standard for applications in which sterility, cleanability and drain-ability are essential for product quality.
Because
the TuBore valve port diameter is identical to the tube inner diameter, no
expansion or contraction can take place inside the system resulting in full
drainage and no traces that could cause contamination. The TuBore line excels
at maximum flow capacity and minimum pressure drop and provides low-torque
tight shutoff. The TuBore series is grouped into three geometric designs
according to the ASME BPE, ISO 1127 and DIN 11850 tube dimension
specifications.
Flowtherm’s offering for Food and Beverage industries includes:
The ModenticV-Z05TC/EB High Purity Two-Piece Ball Valve has an
investment casting construction with a blow-out-proof stem design. Designed
according to 3A it has an optional Handle with locking device and antic-static
device. constructed from stainless steel, which can withstand the temperature,
pressure, and chemical corrosiveness assuring the purity and integrity of the
product. Similarly, Modentic V-Z58TC/EB 3 piece Sanitary Ball Valve and
Modentic K-ZO4TC High Purity Multi-way Flanged Ball Valve has an investment
casting construction with a blow-out-proof stem design, however, includes an ISO
522 direct mounting flange. The Multi-port Ball Valve comes with optional T-Port
or L-Port. Additionally, The Modentic V-Z05MTC/MEB 3 piece Sanitary Ball Valve has an investment casting
construction with a blow-out-proof stem design and a non-direct ISO 522
mounting flange.
The
Modentic V-255 and V-655 Fire safe flanged 3 piece ball valves
have an investment cast body construction with an ISO 5211 mounting flange and
blow-out-proof stem design. Additionally, with a ABS type approval for marine,
offshore platform and industrial applications suitable for water, oil and air. The
flanged ball valves are available for a pneumatic or electric Actuator and NACE
MR0175 with a Super Alloy material for highly corrosive mediums are available
upon request. Similarly, the Modentic Fire Safe MD-32 2 Piece Ball Valve is
a flanged ball valve with Blow-Out-Proof Stem design. Available with a pneumatic
or electric actuator. With NACE MR0175 and super alloy materials for highly
corrosive medium available upon request.
Flowtherm also offers the Modentic V-CO5 Super Alloy 3 Piece Ball Valve, V-C06 Full Bore 2 piece Ball Valve and MD-C2 Full Bore 2 piece Ball Valves which are made by bar material. With a blow-out-proof stem design and regular handle.
The
Habonim Double Block and Bleed Valve in the Dual-Safe valve series
presents an optimal design solution and guarantees isolation on critical
applications and service when an emergency shut-down (ESD) valve is a
necessity.
The
Dual-Safe unit incorporates two main isolation valves and one bleed valve in a
single body construction.
This
special construction offers the lowest possible number of potential leakage
points from a process connection and reduces the overall valve envelope size
and weight by integrating valves, piping, and fittings into one compact design.
The
Habonim Diverter Valves are primarily used to split or combine
process flows, or to switch medium among different pieces of process equipment
such as pumps, filters, or whole pipelines.
Diverter
valves provide reliable, high flow rates in the most
severe operating conditions including vacuum conditions. They can also handle
highly viscous media without the need for constant back-flushing.
The
Habonim Flush
Tank Valve incorporates all the advantages of the 3-piece ball valve
47 series and the TuBore™ 48 series. The innovation of the Flush Tank valve is
the geometric design of the pad, which becomes an integral welded part of the
customer’s tank surface, allowing a smooth flow and preventing media
stagnation. The result is a perfect adaptor between reactor and valve body, the
Flush Tank Valve brought to you by Flowtherm and Habonim.
Habonim’s
tough line of metal seated valves excels in the harshest industrial
environments, where valve failures can damage plant efficiency, reduce
profitability and endanger safety. The meticulously engineered metal seated valve can withstand the harshest applications and process conditions,
including extreme high temperature, high pressure and abrasive medium.
Habonim’s
rugged Flanged Ball valves
provide high durability and exceptional performance even under the most extreme
conditions.
Habonim
control valves are designed to meet industrial
demands for accurate, flexible, cost efficient and maintenance friendly flow
control systems. The valves provide excellent performance in the harshest
environments. They offer a compact, lightweight, long-life solution with:
step-less characterized pressure and flow control for fast response times, wide
rangeability, and bubble-tight shutoff. Critical performance features include:
high pressure drop capacity with straight-through flow, high Cv, and large
exhaust capacity.
The Habonim high pressure valve is based on a floating ball valve technology, specially built for endurance and reliability with a design pressure of up to ANSI Class 2500 (414 bar / 6000 psi). As standard, the high pressure series is made from forged or rolled bar material. Habonim are able to ‘sculpture’ the valve to customer specific demands in a very short time.
Flowtherm
helps you stay at the forefront of the energy market with Habonim’s
Cryogenic Ball Valve. Under extremely low temperatures and
in the harshest of environments, Habonim products consistently exhibit high
flow capacity, tight shutoff, energy efficiency and long service-free life.

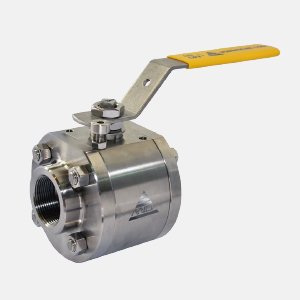

Habonim’s
line of 3 piece ball valves are engineered for endurance and to meet
the most demanding industrial and international standards.
Habonim’s Multiport Ball valves are used primarily to simplify pipe and valve systems by replacing multiple two-way valves and automation devices with one multiport valve. Multiport valves minimize dead legs, optimize drain-ability, simplify system validation and provide a reduced envelope profile for easier installation and safer operation in constrained spaces.
The Habonim trunnion mounted 2 piece and 3 Piece valves are specially designed to endure the harsh conditions of the oil & gas and petrochemical industries. The robust design tolerates the heavy loads applied to the valve trim that result from of large sizes, high pressures and dynamic temperature cycles. The trunnion valve series is certified to API 6D (Habonim monogram #6D-1278) with a valve wall thickness that is in full compliance with ANSI B16.34.
